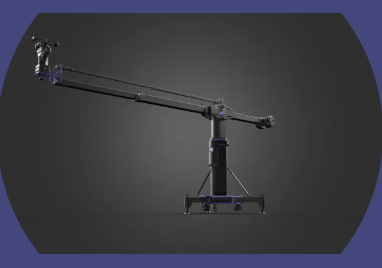

Light Weight Robotic Crane/Jib
MJ-LW08JB
1. Total Length: 1.4m-2.3m
2. Payload: 15 kgs
3. X,Y,Z 3 axis
4. Voltage is 220V, Maximum power is 200W
5. Max noise <30db
6. Support RS422, UDP output Free-D date
Movement specification:
Pan range of the jib: ±180°, speed:0-60°/s, precision:0.00043°
Tilt range of the jib:-35°-55°, speed:0-60°/s, precision:0.00043°
MJ-LW10JB
1. Total Length: 2.5-3.2m
2. Payload: 20 kgs
3. X,Y,Z 3 axis
4. Voltage is 220V, Maximum power is 200W
5. Max noise <30db
6. Support RS422, UDP output Free-D date
Movement specification:
Pan range of the jib: ±180°, speed:0-60°/s, precision:0.00043°
Tilt range of the jib:-35°-55°, speed:0-60°/s, precision:0.00043°

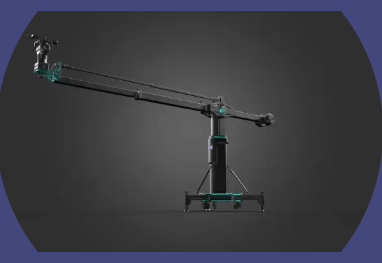

Professional Class Robotic Crane/Jib
MJ-HW20JB
1. Total Length: 2.9m-4.5m
2. Payload: 30 kgs
3. X,Y,Z 3 axis
4. Voltage is 220V, Maximum power is 200W
5. Max noise <30db
6. Support RS422, UDP output Free-D date
Movement specification:
Pan range of the jib: ±180°, speed:0-60°/s, precision:0.00043°
Tilt range of the jib:-35°-55°, speed:0-60°/s, precision:0.00043°
Professional Class Robotic Crane/Jib
MJ-HW30JB
1. Total Length: 2.9-4.5m
2. Payload: 40 kgs
3. X,Y,Z 3 axis
4 Voltage is 220V, Maximum power is 250W
5. Max noise <30db
6. Support RS422, UDP output Free-D date
Movement specification:
Pan range of the jib: ±355°, speed:0-60°/s, precision:0.00043°
Tilt range of the jib:-35°-55°, speed:0-60°/s, precision:0.00043°

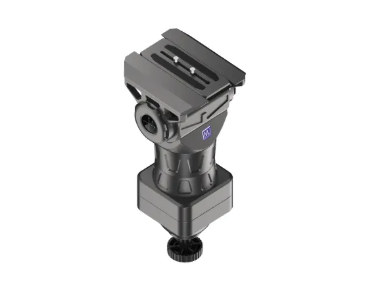

Light Weight Robotic Pan Tilt Head
MJ-LW08VH
Technical Specification:
1. Ball size: 100mm
2. Payload is 08kg
3. Pan, tilt, zoom, focus,aperture 5 axis
motion auto-running
4. Noise < 30 db
5. System input voltage: 220V/110V.
Maximum capacity: 48W.
6. RS422, RS232
Movement specification:
1. Pan of the fluid head: ±180°, speed: 0-50°/s,
precision:0.002°
2. Tilt of the fluid head: ±65°, speed: 0-40°/s, precision:0.002°
3. Zoom/focus, 0-65535, 1.5s Can be installed on Celling/Wall/Tripod
MJ-LW12VH
Technical Specification:
1. Ball size: 100mm
2. Payload is 12kg
3. Pan, tilt, zoom, focus,aperture 5 axis
motion auto-running
4. Noise < 30 db
5. System input voltage: 220V/110V.
Maximum capacity: 48W.
6. RS422, RS232
Movement specification:
1. Pan of the fluid head: ±180°, speed: 0-50°/s, precision:0.002°
2. Tilt of the fluid head: ±65°, speed: 0-40°/s, precision:0.002°
3. Zoom/focus, 0-65535, 1.5s Can be installed on Celling/Wall/Normal Tripod
Studio Camera Robotic Pan Tilt Head
MJ-LW18VH
Technical Specification:
1. Ball size: 100mm
2. Payload is 18kg
3. Pan, tilt, zoom, focus,aperture 5 axis
motion auto-running
4. Noise < 30 db
5. System input voltage: 220V/110V.
Maximum capacity: 48W.
6. RS422, RS232
Movement specification:
1. Pan of the fluid head: ±180°, speed: 0-50°/s, precision:0.002°
2. Tilt of the fluid head: ±65°, speed: 0-40°/s, precision:0.002°
3. Zoom/focus, 0-65535, 1.5s Can be installed on Celling/Wall/Normal Tripod
MJ-HW30VH
Technical Specification:
1. Ball size: 100mm
2. Payload is 30kg
3. Pan, tilt, zoom, focus,aperture 5 axis
motion auto-running
4. Noise < 30 db
5. System input voltage: 220V/110V.
Maximum capacity: 100W.
6. RS422, RS232
Movement specification:
1. Pan of the fluid head: ±180°, speed: 0-50°/s, precision:0.002°
2. Tilt of the fluid head: ±65°, speed: 0-40°/s, precision:0.002°
3. Zoom/focus, 0-65535, 1.5s Can be installed on Celling/Wall/Normal Tripod
Heavy Duty Camera Robotic Pan Tilt Head
MJ-HW50VH
Technical Specification:
1. Ball size: 100mm
2. Payload is 50kg
3. Pan, tilt, zoom, focus,aperture 5 axis motion auto-running
4. Noise < 30 db
5. System input voltage: 220V/110V. Maximum capacity: 100W.
6. RS422, RS232
Movement specification:
1. Pan of the fluid head: ±180°, speed: 0-50°/s, precision:0.002°
2. Tilt of the fluid head: ±65°, speed: 0-40°/s, precision:0.002°
3. Zoom/focus, 0-65535, 1.5s Can be installed on Celling/Wall/Normal Tripod
Light Weight Robotic Pedestal
MJ-RP30
Technical Specification:
1. Payload: 30kg
2. Up and down programmable
3. Noise < 30 db
4. System input voltage: 220V/110V,
maximum power: 220W
5. Support RS422, RS232
Movement specification:
Lifting range: 990-1790mm, speed: 0-35cm/s, precision: 0.00043°
Heavy Duty Robotic Pedestal
MJ-RP50
Technical Specification:
1. Payload: 50kg
2. Up and down programmable
3. Noise < 30 db
4. System input voltage: 220V/110V,
maximum power: 220W
5. Support RS422, RS232
Movement specification:
Lifting range: 990-1790mm, speed: 0-35cm/s, precision: 0.00043°
Professional Control Panel
MJ-CT003
1. Win10 system
2. Physical operation sticks
3. Manual control and automatic operation switch
4. Save Max. 16 programs and 120 scenes
5.Multi-robot control: one panel can connect and control multiple robots
6. Touch screen can see thumbnails of the shots
Software Controller
MJ-CT001
1. Save Max. 16 programs and 120 scenes
2. One-to-many control: one panel can
connect and control multiple robots
3. Touch screen can see thumbnails of the shots
Manual Control Handle
MJ-MC004
Manual operation module, allows switching to manual operation without powering off.
Contains two 9-inch displays, lens zoom and focus handles.
